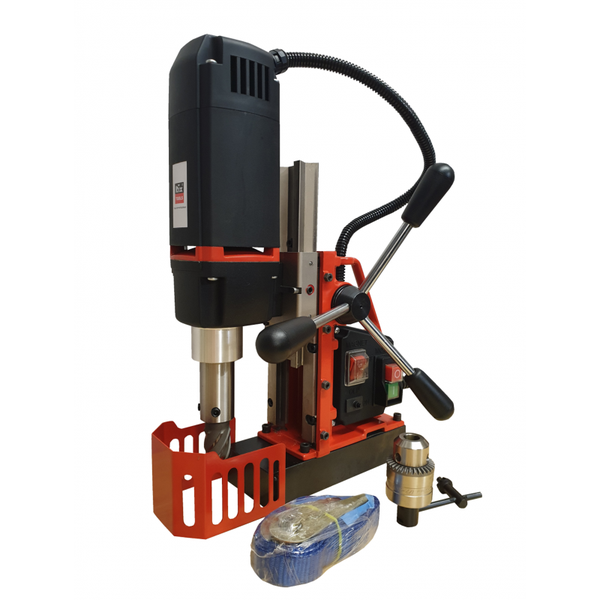

MAG DRILL RIX 40 HL

MAG DRILL RIX 40 HL
£445.00

RIX40HL powerful compact lightweight magnetic drill with added high lift function.

Capable of drilling up to 40.00 mm Ø with both long & short series

annular core cutter ( broach cutters ). Using the same compact body as the RIX35 the RIX40HL model

has a heavier duty gearbox and longer magnetic base for stability.

A dovetail slide has been added which by releasing a lock screw gains the user a very usable extra 100mm of height.

Each machine comes supplied with a 13mm chuck & adaptor set, coolant tank, guard, safety strap, user instructions and transport case.

110V & 240V options.

Power 1020W

Core Capacity 12-40.0mm Ø

Cutting Depth 50.0mm

No load Speed 400rpm

Stroke 110mm plus extra 100mm.

M/C Weight 10.0KG

Magnetic Footprint 80 X 200mm





Arbor Mount 19.0mm Weldon
